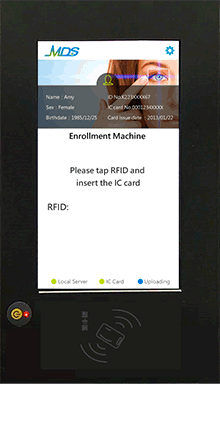

Enrollment operation animation
MDS-E100
MDS-E100 is designed for forming patient’s identity information in paperless and electronic way, which reduces medical staff’s workloads and eliminates enrollment paperwork. MDS-E100, makes the whole procedure digital. With MDS-E100, the medical staff only need to read a card or barcode instead of filling a form or enter information into the computer. The enrollment procedure thus could be shortened and accomplished in only 3 seconds.
∣  Supported identification methods  ∣

IC card


                      IC card

IC card + RFID


                      IC card + RFID

IC card + barcode


                      IC card + barcode

IC card + RFID + the patient number


                      IC card + RFID + the patient number

Embrace the revolution

You must change if you are to get better. MDS is ready to transform the way you think and the way you work


                    Supported identification methods

Supported identification methods

  • MDS supports scanning barcode and QRcode to retrieve the corresponding serial patient number or the number of health records.
  • MDS supports manual input of patient number.
  • MDS supports reading the health insurance card (IC card) to obtain the patient’s information (name, sex, DOB, etc.)
  • MDS supports the identification methods as RFID medical wristband and RFID card.
  •
                    Binding of identification data

    Binding of identification data

  • MDS provides the function of binding multiple identification methods together when there using over one method. For instance, when the patient use the health insurance card and the barcode simultaneously to represent his or her identity,the medical staff can retrieve the patient’s information and records by either the health insurance card or the barcode.
  •
                    Record searching system

    Record searching system

  • Tap the card/ scan the barcode/insert the health insurance card to represent the patient’s information.
  •
                    Hierarchical File System

    Hierarchical File System

  • MDS will construct the hierarchical file managers according to the customized setting. For instance, the first layer could be the date of birth, the second layer could be phone numbers and the third layer could be date of examination.
  •
                    Retrieval of examinations items

    Retrieval of examinations items

  • According to a.serial numbers b. Identification numbers c. Health insurance card number d. RFID UID to retrieve the examination items.
  • Tapping the card, scanning the barcodes, inserting the health insurance card to retrieve the identity of patients. Also, MDS is integrated with the system of health information to represent the examinations items.
  •
                    Data Propagation interface

    Data Propagation interface

  • WiFi wireless internet, and RJ45 internet
  •

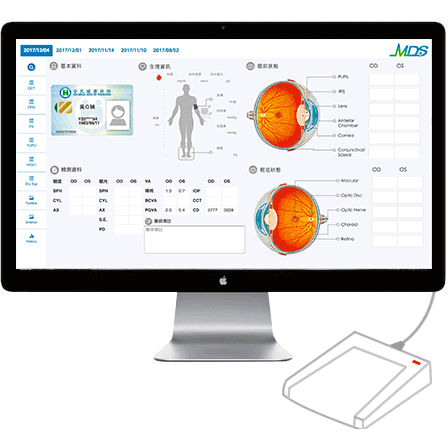

                    Cross-station Retrieval System

    Cross-station Retrieval System

  • MDS can retrieve the measurement results by cross-station method after reading the patient information.
  • Information could be retrieved by cross-station method : AR, IOP, VA, and glass data.

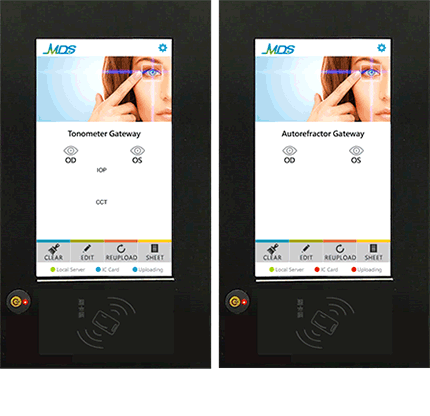

  • Data operation animation
    MDS-T100 and MDS-R100
    MDS data series creates their main value with automated data collection and data transfer. By MDS data series, data output by different devices are automatically consolidated and integrated. All the integrated data are then delivered seamlessly to the central management system with a unified format. The most important advantage of using MDS data series is that the whole process is automated and instant without any manual operation. For autorefractors and tonometers, there are two corresponding products, MDS-T100 and MDS-R100 and nearly 99% of devices could work with MDS data series.
    ∣ MDS-T100  Support Device List  ∣
    canon TX-F
    Canon
    TX-F
    Canon TX-F Real Cases
    Canon TX-20P
    Canon
    TX-20P
    Canon TX-20P Real Cases
    Crystalvue Tonovue
    Crystalvue
    Tonovue
    Crystalvue Tonovue Real Cases
    Nidek NT530P
    Nidek
    NT530P
    NIDEK NT530P Real Cases
    Nidek NT510
    Nidek
    NT510
    Nidek NT510 Real Cases
    Shin-Nippon NCT-200
    Shin-Nippon
    NCT-200
    Shin-Nippon NCT-200 Real Cases
    Topcon CT-80
    Topcon
    CT-80
    Topcon CT-80 Real Cases
    Topcon CT-800
    Topcon
    CT-800
    Tomey FT-1000
    Tomey
    FT-1000
    Tomey FT-1000 Real Cases
    Kowa KT-800
    Kowa
    KT-800
    ∣ MDS-R100  Support Device List  ∣
    Huvitz HRK-8000A
    Huvitz
    HRK-8000A
    Huvitz HRK-8000A Real Cases
    Huvitz HRK-7000
    Huvitz
    HRK-7000
    Huvitz HRK-7000 Real Cases
    Huvitz HRK-7000A
    Huvitz
    HRK-7000A
    Tomey RC-5000
    Tomey
    RC-5000
    Tomey RC-5000 Real Cases
    Tomey RT-7000
    Tomey
    RT-7000
    Tomey RT-7000 Real Cases
    Nidek ARK-1
    Nidek
    ARK-1
    Nidek ARK-1 Real Cases
    Nidek ARK-1A
    Nidek
    ARK-1A
    Nidek ARK-510A
    Nidek
    ARK-510A
    Nidek AutoVA-Handyrefk
    Nidek
    HandyRef-K
    Topcon KR800
    Topcon
    KR800
    Topcon KR800 Real Cases
    Topcon KR-800a
    Topcon
    KR-800a
    Topcon KR-8800
    Topcon
    KR-8800
    Topcon KR-8900
    Topcon
    KR1
    Topcon KR-8900
    Topcon
    KR-8900
    ∣ MDS-L100  Support Device List  ∣
    Nidek LM-7
    Nidek
    LM-7
    Nidek LM-7 Real Cases
    Nidek LM-7P
    Nidek
    LM-7P
    Nidek LM-7P Real Cases
    Nidek LM-1000P
    Nidek
    LM-1000P
    Huvitz HLM-7000
    Huvitz
    HLM-7000
    Huvitz HLM-7000 Real Cases
    Topcon CL-100
    Topcon
    CL-100
    Topcon CL-300
    Topcon
    CL-300
    ∣ MDS-C100  Support Device List  ∣
    Nidek TS-310
    Nidek
    TS-310
    Nidek TS-610
    Nidek
    TS-610
    Nidek RT5100
    Nidek
    RT5100
    ∣ MDS-TR100  Support Device List  ∣
    Nidek Tonoref III
    Nidek
    Tonoref III

    Embrace the revolution

    You must change if you are to get better. MDS is ready to transform the way you think and the way you work


                    Tonometers ,autorefractors and autolensmeters are supported

    Tonometers ,autorefractors and autolensmeters are supported

  • MDS connects the devices by RS232 protocol and support DB-9, DB-25 pinouts.
  • MDS extracts data output from devices and then parse ,analyze and store the measurement results.
  •
                    MDS supports the electric sheet representation mode

    MDS supports the electric sheet representation mode

  • MDS could represent the measurement results after extracting the data from medical devices.
  • MDS could represent the picture of the printouts that is the same as the ones printed by medical devices.
  •
                    MDS supports manual input, editting mode

    MDS supports manual input, editting mode

  • Users could turn the editing mode on and off after the gateway received the data output from the medical devices.
  • Users could add new data by editing mode when the data propagation doesn’t work between the gateway and the device.
  •
                    Clear all data or add more data

    Clear all data or add more data

  • Clear all data: Clear all the saved data that day first and upload the latest data
  • Add more data: Add more data to the existing records that day.
  •
                    Output Option

    Output Option

  • Net Neighborhood: MDS transfers files to the designated file manager through SMB.
  • FTP: MDS will transfer files to the designated URL through the designated FTP protocol.
  • WEB service: MDS will call the designated WEB service and transfer files to the designated URL in JSON format.
  • Database: MDS will transfer files to the designated database through database connection.
  •
                    Formats of output files

    Formats of output files

  • Graphics: JPG and PNG files are supported. MDS generate the graphical files with patient information according to the original formats produced by the device producer.
  • Users could set up the designated headers and footers. EX: the name of the hospital.
  • Users could set up the identity information. EX: patient numbers, patient’s name, ID numbers and numbers of the health insurance card.
  • TXT files: MDS will save the raw data in as a TXT file and output it.
  • XLS files: MDS will parse the data and organize them as united columns and output the data in a CSV file. The gateway could dynamically accustoms different devices and organize data in orders no matter what brand and types they are. EX: MDS could parse the data output from autorefractor A and autorefractor B and transform them into informations in order of columns.
  •
                    Hierarchical File System

    Hierarchical File System

  • MDS will construct the hierarchical file managers according to the customized setting. For instance, the first layer could be the date of birth, the second layer could be phone numbers and the third layer could be date of examination.
  •
                    Filename of output names

    Filename of output names

  • measurement time
  • identification information includes patient numbers, ID numbers, numbers of the health insurance card, and RFID UID.

                    Job performance scale for the medical staff

    Job performance scale for the medical staff

  • The medical operators could sign in the system with their unique ID to record all the measurements in the job performance scale.
  • sign in with RFID card, Unique ID or personal code.
  •
                    Identifying the patient

    Identifying the patient

  • tap the card/ scan the barcode/QR code/ insert the health insurance card to represent the patient’s information.
  •
                    Data Propagation interface

    Data Propagation interface

  • WiFi wireless internet, and RJ45 internet
  •
                    Temporary preservation mechanism

    Temporary preservation mechanism

  • The gateway adopts the MQTT structure to ensure the stable file propagation.
  •
                    Cross-station Retrieval System

    Cross-station Retrieval System

  • MDS can retrieve the measurement results by cross-station method after reading the patient information.
  • Information could be retrieved by cross-station method : AR, IOP, VA, and glass data.

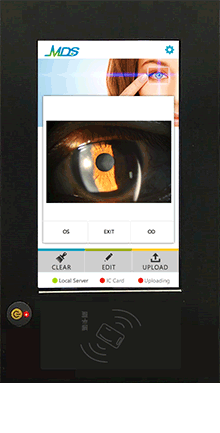

  • Data operation animation
    MDS-F100
    MDS-F100 is designed for parsing and transmitting fundus or slitlamp or slitlamp photos output by cameras. By MDS, the just taken photos would instantly be fetched by MDS and show on the screen. Selecting and marking the photo could also proceed on the touch screen of MDS-F100. The whole procedure could be completed by MDS digitally.
    ∣ MDS-F100  Support Device List  ∣
    Kowa Nonmyd7
    Kowa
    Nonmyd7
    Kowa Nonmyd7 Real Cases
    Kowa_Nonmyd 8
    Kowa
    Nonmyd 8
    Kowa Nonmyd 8 Real Cases
    • Kowa_nonmyd 8
    Optos Daytona
    Optos
    Daytona
    Optos Daytona Real Cases
    Medworks S390H
    Mediworks
    S390H
    Mediworks S390H Real Cases
    Crystalvue_FundusVue
    Crystalvue
    FundusVue
    FundusVue Real Cases
    Crystalvue NFC-700
    Crystalvue
    NFC-700
    Crystalvue NFC-700 Real Cases
    Nidek AFC-330
    Nidek
    AFC-330
    Topcon DC-4
    Topcon
    DC-4
    Haag streit bq900
    Haag Streit
    Bq900
    Haag Streit Bq900 Real Cases
    Cso Sl9900
    Cso
    Sl9900
    Cso Sl9900 Real Cases
    Topcon DC-4
    Keeler
    HSeries Slitlamp

    Embrace the revolution

    You must change if you are to get better. MDS is ready to transform the way you think and the way you work


                    Transmission modes

    Transmission modes

  • File Manager:MDS distinguishes the period of picture producing to extract the data output from the medical devices.
  • Cameras: MDS extracts the pictures output form the medical device and represent them instantly.
  •
                    File Formats

    File Formats

  • The applicable file formats are JPG, PNG, TIFF. The gateway receive the files generated by devices and transform them into JPG, PNG, TIFF or DICOM files. The files will be saved and transferred to the back-side system.
  • The applicable file format is DICOM. The gateway extracts the pictures in the file and save the JPG, PNG, TIFF or DICOM files in the back-side system.
  •
                    Editing interface

    Editing interface

  • Users can mark the photos as OD or OS
  • Users can delete the photos
  • Users can check each photo with the magnifier tool
  •
                    Dual Uploading Modes

    Dual Uploading Modes

  • Select the uploading options (Adding a first record/ Adding a record) to upload the photos
  • Replace the previous photo : Instantly replace the photo with new photos in seconds to solve the conditions as bad image quality and etc.
  •
                    Output Modes

    Output Modes

  • Net Neighborhood: MDS transfers files to the designated file manager through SMB.
  • FTP: MDS will transfer files to the designated URL through the designated FTP protocol.
  • WEB service: MDS will call the designated WEB service and transfer files to the designated URL in JSON format.
  • Database: MDS will transfer files to the designated database through database connection.
  •
                    Filenames Options

    Filenames Options

  • measurement time
  • identification information includes patient numbers, ID numbers, numbers of the health insurance card, and RFID UID.
  •
                    Hierarchical File System

    Hierarchical File System

  • MDS will construct the hierarchical file managers according to the customized setting. For instance, the first layer could be the date of birth, the second layer could be phone numbers and the third layer could be date of examination.
  •
                    Job performance scale for the medical staff

    Job performance scale for the medical staff

  • The medical operators could sign in the system with their unique ID to record all the measurements in the job performance scale.
  • sign in with RFID card, Unique ID or personal code.
  •
                    Identifying the patient

    Identifying the patient

  • tap the card/ scan the barcode/QR code/ insert the health insurance card to represent the patient’s information.
  •
                    Data Propagation interface

    Data Propagation interface

  • WiFi wireless internet, and RJ45 internet
  •
                    Temporary preservation mechanism

    Temporary preservation mechanism

  • The gateway adopts the MQTT structure to ensure the stable file propagation.
  •
                    Cross-station Retrieval System

    Cross-station Retrieval System

  • MDS can retrieve the measurement results by cross-station method after reading the patient information.
  • Information could be retrieved by cross-station method : AR, IOP, VA, and glass data.

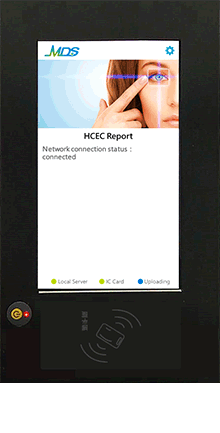

  • Report operation animation
    MDS-A100
    MDS-A100 is designed for parsing and transmitting reports and analysis output by medical devices as OCT, OPD, HFA etc. Via MDS-A100, files could be organized by a formulated rule without any complicated human operation process.
    ∣ MDS-A100  Support Device List  ∣
    Nidek CEM530
    Nidek
    CEM530
    Nidek CEM530 Real Cases
    NIDEK OPD-Scan III
    Nidek
    OPD-Scan III
    Nidek OPD-Scan III Real Cases
    NIDEK AL-Scan
    Nidek
    AL-Scan
    Nidek AL-Scan Real Cases
    Oculus Keratograph 5M
    Oculus
    Keratograph 5M
    Oculus Keratograph 5M Real Cases
    Oculus Keratograph 4
    Oculus
    Keratograph 4
    Oculus Pentacam
    Oculus
    Pentacam
    Heidelberg HRT3
    Heidelberg
    HRT3
    Heidelberg HRT3 Real Cases
    Heidelberg Spectralis
    Heidelberg
    Spectralis
    Heidelberg Spectralis Real Cases
    Heidelberg HRA2
    Heidelberg
    HRA2
    Topcon 3D OCT-1
    Topcon
    3D OCT-1
    Topcon 3D OCT-1 Real Cases
    Tomey OA-2000
    Tomey
    OA-2000
    Tracey Itrace
    Tracey
    Itrace
    Zeiss HFA-II 740
    Zeiss
    HFA-II 740
    Zeiss HFA 720i
    Zeiss
    HFA 720i
    Zeiss HFA 720i Real Cases
    Zeiss HFA3
    Zeiss
    HFA3
    Zeiss IOLMaster 500
    Zeiss
    IOLMaster 500
    Zeiss IOLMaster 500 Real Cases
    Cso Antares
    Cso
    Antares
    Cso Antares Real Cases
    Moptim Mocean 4000
    Moptim
    Mocean 4000
    Moptim Mocean 4000 Real Cases
    Alcon verion
    Alcon
    Verion
    Alcon Verion Real Cases
    Frey HFA AP300
    Frey
    HFA AP300
    SBM Dry Eye O.S.A
    SBM
    Dry Eye O.S.A

    Embrace the revolution

    You must change if you are to get better. MDS is ready to transform the way you think and the way you work


                    Data Transmission Mode

    Data Transmission Mode

  • MDS will distinguishes the period of reports producing to extract the data output from the medical devices.(OCT, TOPO, etc.)
  •
                    Data Outputting Modes

    Data Outputting Modes

  • By Net Neighborhood. MDS will transfer reports through SMB to the designated file manager.
  • By FTP. MDS transfers the reports to the designated URL through FTP protocol.
  • By WEB service. MDS will call the designated WEB service to transfer reports in multipart formats through POST to the designated URI.
  • By Database. MDS will transfer reports to the designated database in a binary format.
  •
                    Filename options

    Filename options

  • measurement time
  • identification information includes patient numbers, ID numbers, health insurance card numbers and RFID UID.
  •
                    Hierarchical File System

    Hierarchical File System

  • MDS will construct the hierarchical file managers according to the customized setting. For instance, the first layer could be the date of birth, the second layer could be phone numbers and the third layer could be date of examination.
  •
                    Report Extraction

    Report Extraction

  • MDS will extract and save several areas of content from the reports as the users designated.
  • MDS will extract and save several areas of graphics from the reports as the users designated.
  •
                    Job performance scale for the medical staff

    Job performance scale for the medical staff

  • The medical operators could sign in the system with their unique ID to record all the measurements in the job performance scale.
  • sign in with RFID card, Unique ID or personal code.
  •
                    Identifying the patient

    Identifying the patient

  • tap the card/ scan the barcode/QR code/ insert the health insurance card to represent the patient’s information.
  •
                    Data Propagation interface

    Data Propagation interface

  • WiFi wireless internet, and RJ45 internet
  •
                    Temporary preservation mechanism

    Temporary preservation mechanism

  • The gateway adopts the MQTT structure to ensure the stable file propagation.
  •
                    Cross-station Retrieval System

    Cross-station Retrieval System

  • MDS can retrieve the measurement results by cross-station method after reading the patient information.
  • Information could be retrieved by cross-station method : AR, IOP, VA, and glass data.
  • Data Capture

    Auto Uploading and Recognition

    MDS-A100 is equipped with data capture techniques to recognize the characters on the medical reports. The data on the reports as OCT, HFA, OPD would be automatically captured after uploaded through MDS-A100. The captured data are able to be implemented into MDS Retrieval System or other hospital information systems, which helps the medical staff to deal with tons of health records. It shortens the operation time and accelerates the acquisition of data, and the reference for long-term observation, which increases the efficiency of examination.

    ∣ Application Process ∣
    OCR Application Process
    ∣  Features  ∣

    Various formats of images and PDF are supported

    Formats of images as BMP,PNG,JPEG,GIF and PDF files are all supported

    Auto transmission and recognition

    MDS-A100 is equipped with OCR techniques to extract data, which reduce the time of reorganizing files. The extracted data could be exported on demands.

    Preprocessing to increase the recognition ratio

    Correct the imported files and improve the recognition ratio of images and reports.

    Exports of recognized files connect to medical system

    The recognized data are transformed into statistical charts which present on Retrieval system to improve the efficiency of diagnosis.

    ML techniques to build templates of data extraction

    The build-in ML mechanism helps to create templates of data categories which increase the efficiency and correctness of file recognition.

    Easy-to-classify medical data

    The personalized data reports make the acquisition of information for treatments and research convenient and seamless.

    Retrieval_System
    Retrieval System
    Retrieval system presents a personal patients record that is centered by patients. The system integrates notes, data, images and reports to present a unified interface. It improves the previous hospital system of pieces of records. In terms of retrieval method, the electronic way saves time of searching and switching the systems. Moreover, MDS Retrieval System presents the visualized data with dynamic charts. These dynamic charts present the continuous information which make the doctors more easily to make the clinical judgement. The MDS-system contains the features of integration, legibility and instant retrieval which accelerate the working efficiency.
    ∣  Supported File Formats  ∣

    Data


                      Data
    VA, BCVA, PCVA, IOP, CCT, etc.



    Fundus photo, Anterior photo

    Reports


                      Reports
    OCT, OPD, HFA, etc.

    Embrace the revolution

    You must change if you are to get better. MDS is ready to transform the way you think and the way you work


                    Fast data access function

    Fast data access function

    。Quickly identify the patients identity through RFID/barcode scanning.
    。After identifying the patient identification, the data is accessed within 5 seconds and the image/report records of the day are processed within 10 seconds.

                    Historical medical record access function

    Historical medical record access function

    。The system displays the latest 3 history records and supports fast record switching button.
    。View historical medical records.

                    Report access function

    Report access function

    。Access the report with the detection date as a filter.
    。Report type : OCT, VF, TOPO, dry eye syndrome

                    Image access function

    Image access function

    。Access the image record with the detection date as a filter.
    。Images include: fundus, slit lamp, HCEC, OCT report, HFA reports and other reports.

                    Registered data display function

    Registered data display function

    。Personal disease display, family history disease display
    。Allergy information
    。Chief Complaints
    。Questionnaire data, such as lifestyle habits, clinical satisfaction, etc.

                    Disease record function

    Disease record function

    。VA/PGVA/BCVA display, record, Visual Acuity notes
    。Check for ocular diseases, including Eyelid、Conj、Cornea、AC、IOL、C/D、Y/D
    。Hand-drawing function of eye disease includes circle and remark.

                    Special treatment

    Special treatment

    。Record and show surgery related information (such as: laser, hordeolum)
    。Hand-drawing function in treatment section includes circle and remark.
    。Historical treatment display
    。Surgical parameter record

                    AR display function

    AR display function

    。Displaying today and history measuring AR data on a small white note.
    。AR history chart drawing function
    。A graph can be drawn according to the average value of before and after mydrasis.

                    IOP display function

    IOP display function

    。Displaying today and history measuring IOP data on a small white note.
    。IOP history chart drawing function

                    Record of patients who wear glasses

    Record of patients who wear glasses

    。Displaying the diopter data of patients who wear glasses, includes CYL, AX, ADD.
    。The data of the glasses can be manually entered or automatically imported from the measuring instrument gateway.

                    Progression note

    Fast data access function

    。SOAP data recording function
    。Assigned function of sympton ICD10
    。Transform sympton ICD 9 to ICD 10 function
    。Medication data entry
    。Medical treatment remark entry

                    OCT related processing record

    OCT related processing record

    。Macula Thickness record, includes manually entered or automatically imported from the OCT gateway report analysis function
    。RNFL record, includes manually entered or automatically imported from the OCT gateway report analysis function
    。Status description of Macula Thickness, RNFL increase, stay, or decrease
    。Macula Thickness, RNFL historical curve display function
    。Macula, RNFL related report image display function

                    VF related processing record

    VF related processing record

    。MD record includes manually entered or automatically imported from the gateway report analysis function
    。PSD record includes manually entered or automatically imported from the gateway report analysis function
    。Status description of Macula Thickness, RNFL increase, stay, or decrease
    。VF historical curve display function
    。VF related report image display function

                    AXL related processing record

    AXL related processing record

    。AXL record includes manually entered or automatically imported from the gateway report analysis function
    。AXL increase, stay, or decrease
    。AXL historical curve display function

                    Next time return Visit Function

    Next time return Visit Function

    。Date of return, clinic room number assigned
    。Next time tick the item for return checkup
    。Next time precautions for return visit.

                    Print Function

    Print Function

    。Health insurance declaration report reading and printing function
    。Print function for public application of printing report
